A型龍門式起重機
Type A Gantry Crane |
|
|

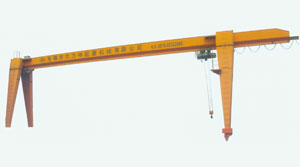

龍門起重機（50/10T） |

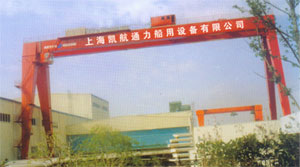

包箱龍門起重機（16T） |
|
 |

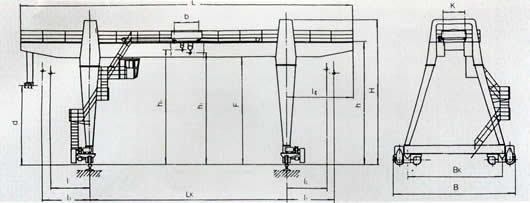

主要尺寸:Main Dimension
起重量 Capacity |
t |
5 |
10 |
16 |
20 |
32 |
50 |
LK |
m |
18 |
30 |
24 |
30 |
30 |
30 |
l4 |
7.15 |
10 |
5 |
10 |
7.5 |
10 |
K |
mm |
1400 |
2000 |
2000 |
2000 |
2500 |
2500 |
b |
1100 |
1400 |
2400 |
2400 |
2700 |
3100 |
Bk |
6675 |
8000 |
9000 |
8000 |
8000 |
8000 |
F |
9516 |
10420 |
12920 |
10140 |
10162 |
10189 |
h |
10821 |
12125 |
14691 |
11963 |
12020 |
12051 |
H |
12980 |
14334 |
17104 |
14216 |
14798 |
14917 |
B |
8106 |
8924 |
11992 |
10658 |
10692 |
10692 |
L |
32300 |
50000 |
34000 |
50000 |
45000 |
50000 |
d |
7914 |
8456 |
12840 |
8456 |
8068 |
8456 |
|
極限位置 Hook Limited Positions
起重量Capacity |
t |
5 |
10 |
16 |
20 |
32 |
50 |
h1 |
mm |
10000 |
11075 |
13214 |
10615 |
10526 |
10076 |
h2 |
|
|
14229 |
11241 |
11365 |
11021 |
l1 |
5000 |
7500 |
2500 |
7500 |
4500 |
7500 |
l2 |
|
|
1745 |
6664 |
3512 |
6429 |
l3 |
|
|
3255 |
8336 |
5488 |
8571 |
|
|
技術規格 pecifications
| 工作制度Service Duty |
中級Medium Duty |
| 起重量 Capacity |
主鉤 Main Hook t |
5 |
10 |
16 |
20 |
32 |
50 |
| 副鉤 Aux. Hook t |
|
|
3 |
5 |
5 |
10 |
| 起升高度 Lifting
height |
主鉤 Main Hook m |
10 |
11 |
13 |
10 |
11 |
10 |
| 副鉤 Aux. Hook m |
|
|
14 |
11 |
12 |
11 |
| 跨度Span m |
18 |
30 |
24 |
30 |
30 |
30 |
| 每端有效應臂長度 Effective Cantilever on Each End
m |
5 |
7.5 |
2.5 |
7.5 |
4.5 |
7.5 |
| 最大輪壓 Meight of Trolley t |
20 |
28 |
21.5 |
20 |
27 |
35 |
| 小車自重 Weight of Trolley t |
2.5 |
3.3 |
6.9 |
7.3 |
11.3 |
12.4 |
起重機總重 Total Weight of
Crane t |
40.2 |
71.8 |
79.1 |
87.9 |
106.8 |
122.9 |
| 速度 Speed |
起升 Hoist |
主鉤 Main Hook m/min |
12 |
9.8 |
9.8 |
9.2 |
9.3 |
6.2 |
副鉤 Aux. Hook m/min |
|
|
18.5 |
18.7 |
19 |
12.5 |
起重機運行 Crane Travelling
m/min |
37.6 |
36.7 |
37.6 |
35 |
37.8 |
37.8 |
| 小車運行 Traversing m/min |
39.5 |
43.7 |
44.2 |
44.2 |
38.2 |
38.6 |
| 電動機 Motor |
起升 Hoist |
主鉤 Main Hook |
YZR160L-6
13KW |
YZR180L-6
17kW |
YZR225M-8
26 kW |
YZR250M1-8
35kW |
YZR280S-8
52 kW |
YZR280S-8
52 kW |
| 副鉤 Aux. Hook |
|
|
YZR160L-6
13KW |
YZR180L-6
17kW |
YZR180L-6
17 kW |
YZR200L-6
26kW |
| 起重機運行 Crane Travelling |
2-YZR160M2-6
2×8.5kW |
2-YZR160L-8
2×13kW |
4-YZR160M2-6
4 ×8.5kW |
4-YZR160M2-8
4×9kW |
4-YZR160L-8
4 ×13kW |
4-YZR160L-8
4×13kW |
| 小車運行 Traversing |
YZR112M-6
1.8kW |
YZR132M1-6
2.5kW |
YZR132M2-6
4kW |
YZR132M2-6
4 kW |
YZR160M1-6
6.3kW |
YZR160M2-6
8.5kW |
| 薦用軌道Track Recommerded |
43kg/m |
43kg/m |
43kg/m |
43kg/m |
43kg/m |
QU80 |
|
|
| |
| |
|
|
|
|
